Standard measurements (mm)

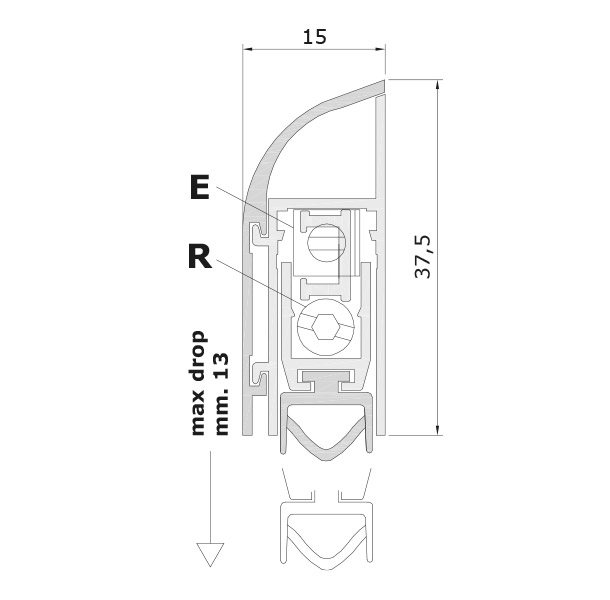

Standard measurements (mm) for drop down seal Comax Series 1750

Standard packaging

Cardboard box with 10 packages complete with standard accessories and assembly instructions

Standard measurements (mm) 430 530 630 730 830 930 1030 1130 1230 1330
Max shortening (mm) 110 100 100 100 100 100 100 100 100 100

Standard measurements (Max shortening): 430 (110), 530 (100), 630 (100), 730 (100), 830 (100), 930 (100), 1030 (100), 1130 (100), 1230 (100), 1330 (100).

* Longer lengths on request

FASTENING SYSTEMS

STANDARD

Standard fastening system for drop down seal Comax Series 1750

Screw

Standard fastening system for drop down seal Comax Series 1750

MAIN APPLICATIONS

Drop down seals for Wood door

Wood door

Drop down seals for Aluminium door

Aluminium door

STANDARD ACCESSORIES

Standard accessories for drop down seal Comax Series 1750

Accesories

FEATURES:
Mechanism (PATENTED) with the parallel descent of the moving profile with gasket, characterised by the DUAL ADJUSTMENT (screw E: descent - screw R: incline) for a strong even pressure on the entire length.

COMPONENTS:
Extruded profiles in aluminium alloy 6060 - anodized or painted, extruded tubular EPDM gasket - elements printed in self-lubricating nylon + nylon reinforced with 30% glass fibre - threaded rods in burnished iron - 7 mm hexagonal button and Ø 6 mm brass bushing - coil springs in treated stainless steel.

VARIATIONS ON REQUEST:

Gasket: silicon tubular, brush
