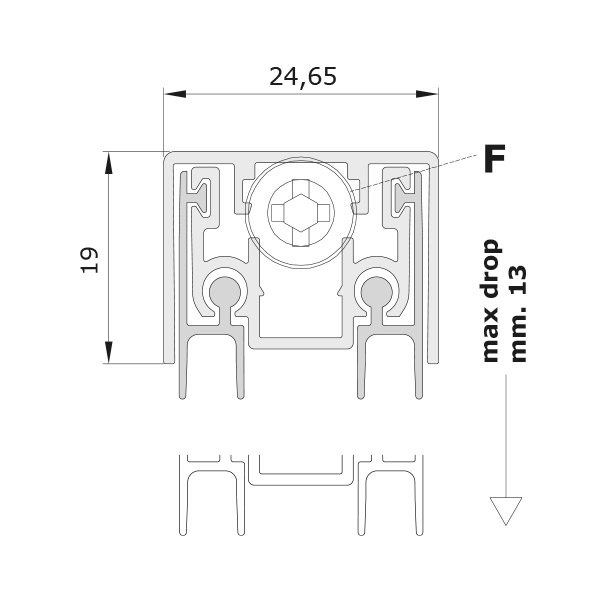

Standard measurements (mm)
Cardboard box with 25 pcs + 25 standard accessory packs
Cardboard box with 15 polyethylene bags with 1 pc + 1 standard accessory pack + assembly instructions
|Standard measurements (mm)||330||430||530||630||730||830||930||1030||1130||1230||1330|
|Max shortening (mm)||130||130||200||200||200||200||200||200||200||200||200|
Standard measurements (Max shortening): 330 (130), 430 (130), 530 (200), 630 (200), 730 (200), 830 (200), 930 (200), 1030 (200), 1130 (200), 1230 (200), 1330 (200).
Remove and screw
Mechanism with a single adjustment (screw F: descent) characterised by the controlled movement of the moving profile with gasket (immediate descent from the hinge side of the door and consequent gradual descent for the entire length) for adjustment to the floor.
Extruded profiles in aluminium alloy 6060 - dual high performance silicone lamellar gasket - elements printed in self-lubricating nylon + nylon reinforced with 30% glass fibre - threaded rods in burnished iron - Ø 6 mm brass bushing - coil springs in treated stainless steel.
VARIATIONS ON REQUEST:
Button: hexagonal brass, square nylon, bevelled nylon, rolling nylon (pivot).
Gasket: high performance wrap-around silicone (art. 1370NS p.74)
Nylon plate: CA101, CA103, CA104, AE, CA201, CA202, CA203, CA204, CA205, CA207.
Insulating nylon plate with silicon gasket: PI002, PI002-R, PI003, PI004, PI005.
Fixing brackets: SCN001A, SCN001B-220NS.
